The advantages of the battery-type lifting platform are not only reflected in the convenience of use, space saving and recycling; and the position of the battery is inside the lifting platform, which fully guarantees safety. We are a professional supplier with the lowest price in the industry and CE. ISO certification. Battery scissor lift are generally divided into three types: Battery scissor lift table,Self-propelled battery scissor lift,Mobile Tracked Crawler Battery Scissor Lift.
Battery scissor lift table
Capacity:150kg-1000kg
Lift Mechanism:Scissor Lift
Lift Drive / Actuation：Electric Motor
Power:0.8-1.6v
Min. Lifting Height: 210mm-500mm
Table Size:750x500x50mm-1200x610x50mm
Weight:110kg-290kg
Certification:CE/ISO9006
Product Name:Battery scissor lift table
Power Source:Hydraulic AC pump/DF pump
Max. Height:700mm-1700mm
Min. Height:210mm-500mm
Dia. of the wheel:100-150
Paremeters:
|
Model |
DP150 |
DP 300 |
DP500 |
DP800 |
DPS350 |
DPS1000 |
|
Load capacity(kg) |
150 |
300 |
500 |
800 |
350 |
1000 |
|
Min.height(mm) |
210 |
280 |
280 |
410 |
360 |
500 |
|
Max.height(mm) |
700 |
900 |
900 |
1000 |
1300 |
1700 |
|
Table dismensions(mm) |
750x500x50 |
950x500x50 |
950x500x50 |
1016x510x50 |
905x500x50 |
1200x610x50 |
|
Dia.of the wheel(mm) |
Φ100 |
Φ125 |
Φ125 |
Φ150 |
Φ125 |
Φ150 |
|
Voltage(V) |
12 |
12 |
12 |
12 |
12 |
12 |
|
Power(kw) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1.6 |
|
Storage battery(Ah) |
65 |
60 |
60 |
65 |
60 |
120 |
|
Charge input voltage |
220/110 |
220/110 |
220/110 |
220/110 |
220/110 |
220/110 |
|
Net weight(kg) |
110 |
110 |
110 |
150 |
140 |
290 |
The Battery scissor lift table is a multi-functional lifting loading and unloading mechanical device. We are manufacturer,has professional skills and cheap price.Compared with the manual platform truck for sale, the operation is simpler, the storage is easier, the appearance is more beautiful, and Battery scissor lift is used for larger cargo. The high-horsepower motor is more stable and the fork can be adjusted. Add as required, 220/110v charging voltage, more convenient The battery scissor lift table is a multi-functional lifting loading and unloading mechanical device. Compared with the manual platform truck, the Battery scissor lift operation is simpler, the storage is easier, the appearance is more beautiful, and the scissor lift is used for larger cargo. The high-horsepower motor is more stable and the fork can be adjusted. Add as required, 220/110v charging voltage, more convenient.

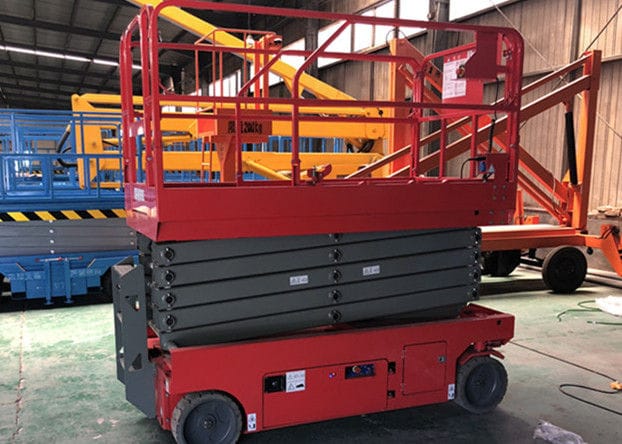

Self-propelled battery scissor lift
Capacity:300kg-1000kg
Lift Mechanism:Scissor Lift
Lift Drive / Actuation：Electric Motor
Power:0.8-1.6v
Min. Lifting Height: 210mm-500mm
Table Size:2270*1120mm--2700*810
Self Weight:2000kg-3000kg
Certification:CE/ISO9006
Product Name:Self-propelled battery scissor lift
Power Source:Hydraulic AC pump/DF pump
Lifting Height:6000mm-11800mm
Paremeters:
|
Data/Model |
JCPT-6HD |
JCPT-8HD |
JCPT-10HD |
JCPT-12HD |
|
Lifting height(mm) |
6000 |
8000 |
10000 |
11800 |
|
Max. working height(mm) |
8000 |
10000 |
12000 |
13800 |
|
Load capacity(kg) |
380 |
320 |
300 |
300 |
|
Guardrail height(mm) |
1100 |
1100 |
1100 |
1100 |
|
Extend platform capacity(kg) |
100 |
100 |
100 |
100 |
|
Platform size(mm) |
2700*810 |
2270*1120 |
2270*1120 |
2270*1120 |
|
Extend platform length(mm) |
870 |
900 |
900 |
870 |
|
Overall size(mm) |
2270*810*1850 |
2480*1160*2320 |
2480*1150*1920 |
2480*1160*2610 |
|
Grade ability |
25% |
25% |
25% |
25% |
|
Lift motor |
24V/3KW |
24V/3KW |
24V/3KW |
24V/4.5KW |
|
Drive speed(stowed) |
3.5km/h |
3.5km/h |
3.5km/h |
3.5km/h |
|
Drive speed(raised) |
0.8km/h |
0.8km/h |
0.8km/h |
0.8km/h |
|
Maintenance-free Battery V/Ah |
4*6/450 |
4*6/450 |
4*6/450 |
4*6/450 |
|
Self Weight(kg) |
2000 |
2100 |
2500 |
3000 |
Self-propelled battery scissor lift can travel quickly and slowly at different heights, and the scissor lift can continuously complete up, down, forward, backward, and steering in a convenient operating platform in the air. This battery scissor lift uses high-quality structural steel, laser welding electronic manipulator single-sided welding double-sided forming process, Italy imported hydraulic pump station or Anshan joint venture hydraulic pump station, aerospace cartridge valve technology, platform equipped with level alarm, balance valve, automatic safety Alarm device such as board, the battery scissor lift is safe and durable, the working height can reach 12 meters, the capacity is 300 kg, the fence can be extended horizontally, the working range is extended greatly, the whole machine is guaranteed for one year,the battery scissor lift has high quality,own manufacturer,lower price. Suitable for the factory workshop and square. Customers in the lobby airport, parks, etc. who have high-altitude operations.
Mobile Tracked Crawler Battery Scissor Lift
Mobile Tracked Crawler Battery Scissor Lift make it easier to work on many difficult and dangerous tasks. This Tracked Crawler Battery Scissor Lift is designed to handle all terrain and construction under harsh terrain. Battery Scissor Lift is convenient and fast. You can use a lifting platform instead of scaffolding to reach you. The height you need to solve your problem. For example: installation and maintenance of street lights and traffic signs, cleaning of exterior wall cleaning rooms, installation of billboards and maintenance. At the same time, you can save your expenses and valuable time. The main feature of the Tracked Crawler Battery Scissor Lift is that the user can control the mechanical lifting and walking without going down the lifting platform, and can control the equipment to travel to other working places on the table. The Battery scissor lift has the function of walking and steering drive, no need for manual traction, and no external power supply. The flexible and convenient movement makes the work at height easier and faster. Tracked Crawler Battery Scissor Lift is the ideal aerial work equipment for efficient and safe production in modern enterprises. The scissor lift is especially suitable for a wide range of high-altitude operations such as construction sites, stations, terminals, airports, power plants, stadiums, and large enterprises.
Parameter:
|
Model |
SJYZ0608 |
SJYZ0810 |
SJYZ1012 |
|
Platform Height |
6m |
8m |
10m |
|
Work Height |
8m |
10m |
12m |
|
Capacity |
450kg |
450kg |
450kg |
|
Platform |
2270*1120mm |
2270*1120mm |
2270*1120mm |
|
Dimensions |
2470*1450*2275mm |
2470*1450*2400mm |
2470*1450*2525 |
|
Extendable Platform |
900mm |
900mm |
900mm |
|
Weight |
2750kg |
2870kg |
3030kg |
Advantage:
1) Guardrail: High-strength guardrails make working at heights safer
2) Bracket: Q235 material rectangular tube has high strength and firm structure. After automatic shot blasting, high-pressure electrostatic spraying makes the paint particles adhere more strongly and does not fade for a long time.
3) Parts: All hydraulic and electrical components are arranged in the doors on both sides for easy access to maintenance.
4) Track: High-strength crawler chassis, strong and wear-resistant, all-terrain adaptation, strong grip and smooth walking.
5) Retractable table top: the table top is free to expand and contract, which is convenient for various environments.
6) Battery pack: Ultra-long power to meet the power required for various outdoor operations
Why Choose us
√ Price. Manufacturer, lower cost makes better price than trading company
√ Quality. Choose high quality steel and other material, ISO9001 and CE certified. Every production chain are strictly regulated to make sure products reliable and durable .
√ Safety: Control voltage is DC24V.Keeping working person safe. Electrical control box is water-proof design. Installing Emergency button,Can keeping working person safe. Self-locking function will work.When electricity is suddenly cut off. System have Emergency drop valve,which can let platform down safely.
√ Service: Strong technical group, can give you best choice of products with good price. Any question from you will reply you in the shortest time. Less delivery time once starting order.
